Leak Detection Systems - for whole house monitoring
AT201 - Standard manual control Leak Detection System
The AT201 is a programmable Leak Detection System with automatic shutoff valve. It is easily fitted inline on your main incoming water pipe, and acts as a Water Safety Trip Switch, monitoring all your plumbing. It is designed to detect the difference between your normal water use and a leak, and will shut off the water if a leak is detected or a tap, hose or appliance is left running.
Simple to use with only one button to control all functions. It is powered by a long life battery (supplied) so needs no wiring or electrical connection, and can be mounted above or below ground either inside or outside*. It can be used in Houses, Apartments or Commercial washroom applications.
The AT201 also has a selectable Sleep Mode for use with Irrigation systems or if used to monitor public washrooms, it can sleep during very busy periods of non stop water use by patrons.
• Patented Leak Sensor with integrated shutoff valve, shuts off water once leak is detected
• Leak Detection Sensing System is programmable to operate in almost any application
• Fast Test Facility allows rapid check of system functions
• Powered by long life 9v battery (supplied)
• Two digit LED status display
• Leak counter display (up to 99) with counter reset facility
• Simple stand alone installation - no wires to connect
• Input port for connection to optional external reset switches or movement sensors
• Sleep Mode for use with Irrigation or for peak hours in busy commercial facilities
• Easy one button operation for all functions and programming
• Low battery warning indicator - water turns off
• Battery power level indicator on LED status display
• Temporary System Override facility
• Emergency manual Total System Override facility
• Service Plug supplied allows for Control Unit maintenance
• Early Warning Indicaton warns user before water is shut off
• Submersible installation allowed (To 2m Depth - Equiv to IP68+)
Avaialble with a choice of PVC or Stainless Steel Shutoff Valves
to suit your incoming pipe size and material
* subject to environmental conditions - see Installation Manual
AT201 with 25mm Stainless
Steel Valve option shown

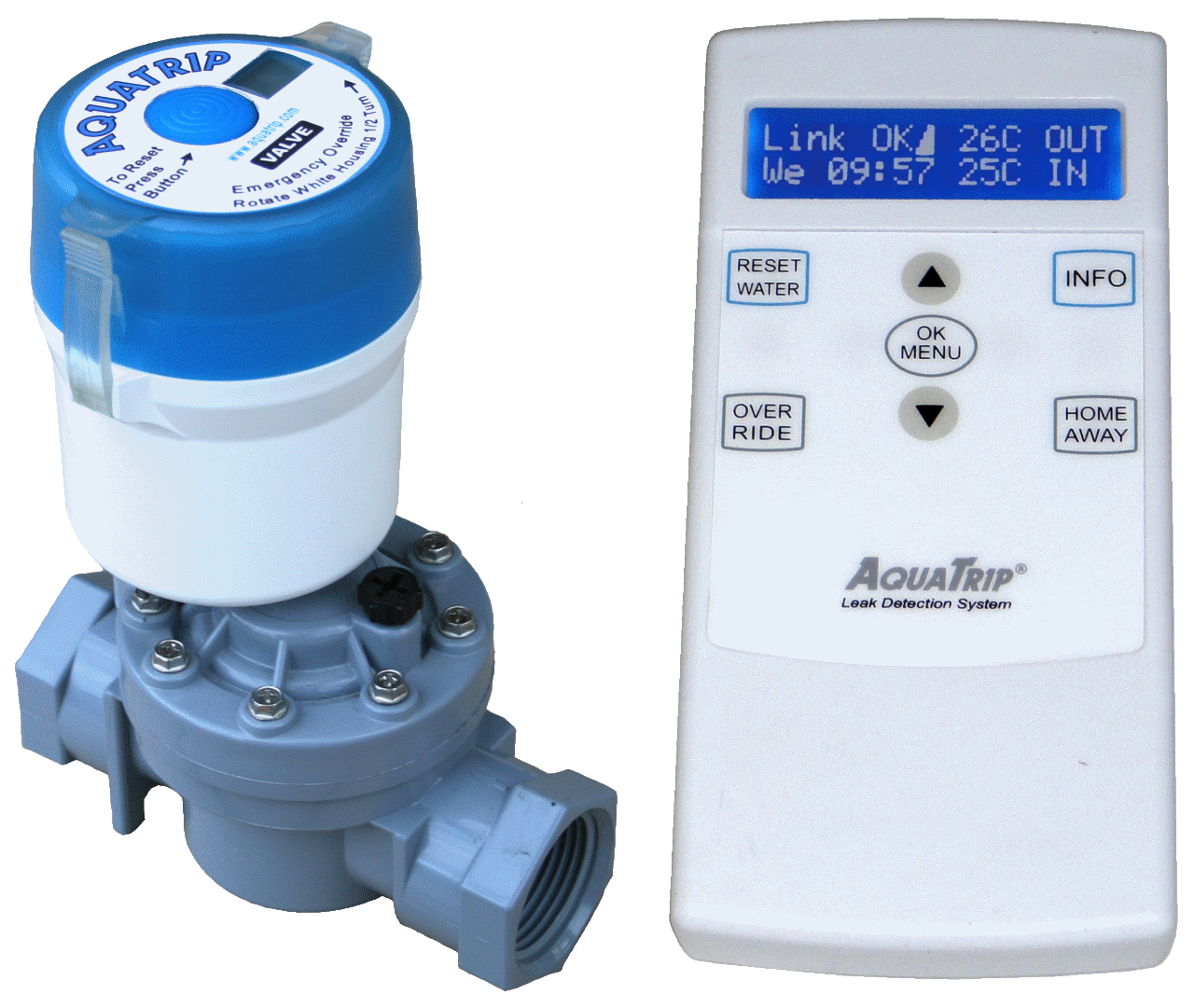

AT401 - Deluxe hard wired Leak Detection System
The AT401 is one of the most advanced Water Management, Leak Detection and Control Systems available on the market today. Designed to look as smart as it is functional, it uses a sleek wall mount Control Panel from which the user can control all the functions and programming of the system. The ultimate and most advanced water safety Trip Switch for plumbing protection.
The Control Panel is connected by a low voltage signal cable to the Shutoff Valve, which is mounted inline on your main incoming water pipe. This allows the AT401 to monitor all the plumbing in the house.
The AT401 is powered by a plug in 12v transformer and has a built in backup battery in case of mains power failure. It can be finely programmed for optimum leak protection, and can also be optionally connected to most water meters with a pulse output to provide a real time consumption display so you can monitor and be aware of exactly how much water you are using and its approximate cost. (Please check if your meter is compatible, feature not available in all markets).
• Wall mount deluxe Control Panel with large backlit LCD display allows easy control of the system
• Patented Leak sensor with integrated Shutoff Valve, shuts off water once leak is detected
• Cable connection between the Control Panel and the Shutoff Valve for instant response (cable not supplied)
• Back up battery in case of mains power failure
• Water Flow indicator on the Control Panel for instant visual confirmation of water flow or a potential leak
• Fast Test Facility allows rapid check of system functions
• Leak Detection system has Peak and Off peak water usage modes to enhance detection capability
• Early Warning Indicator alerts user to impending water shut off - e.g. prevents user being caught in the shower with no water
• Home/Away mode for increased leak detection protection - Automatic or Manual settings available
• Nightwatch mode for increased overnight leak detection sensitivity
• Sleep Mode - Programmable Exclusion Period disables Flow Sensor when required - e,g, for when using garden irrigation
• Short term system override from Control Panel for occasional longer than normal water usage
• Emergency manual override facility if system needs to be turned off for building work/maintenance
• Water can be shut off from the Control Panel - no need to access the incoming main tap for plumbing maintenance
• Replacable mesh filter protects units from debris in water supply
• Accessory Port may allow connection of movement sensors, extra reset switches or water meter inout signal.
• Can display water consumption and cost if connected to existing water meter (may require additional optional cable and only
if the water meter has a compatible pulse output).
Available with a choice of PVC or Stainless Steel Shutoff Valves to suit your incoming pipe size or material
